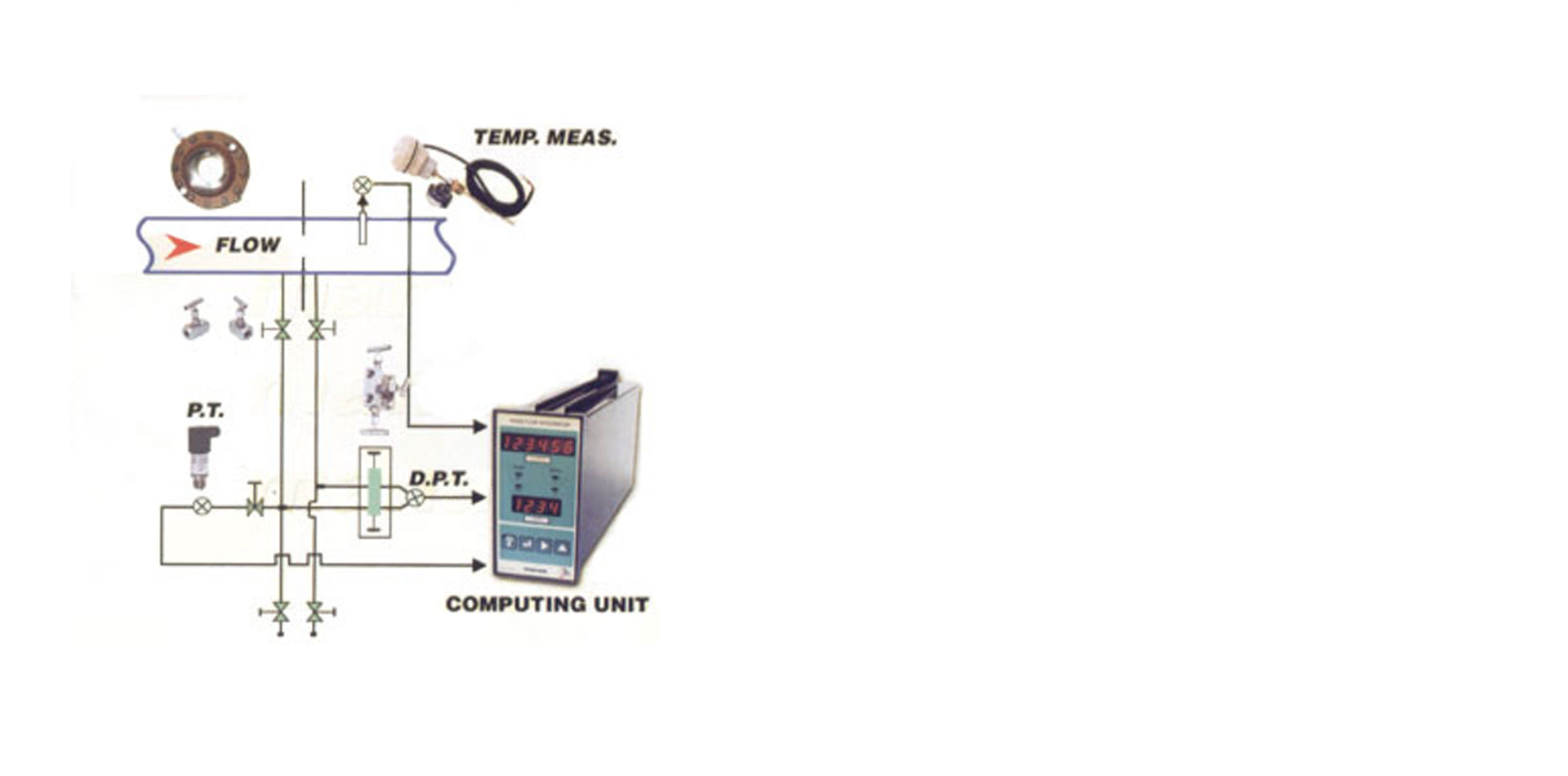

STEAM FLOW METERING SYSTEM (AIR / GAS / BIOGAS)
MASS FLOW : Qm = N * C * E * Y1 * d2 * √(Δ p*ρ)
Features
- Various sizes of orifice assemblies with accurate calculations
- Anubar assemblies also available
- Typical Turndown 10 : 3
- For 10 : 1 turndown, V cone resriction elements are available
- Various types of needle valves, gate valves & manifolds with or without IBR approval as per application
- On-line density compensation possible because of on-line Pressure & Temperature measurement
- Various types of Computing Units with Totalizer
- Complete system engineered to your requirement
- Partial system to suit your existing uncompensated flow measurements
- Isolated 4-20mA DC output proportional to compensated flow rate
- Display of on-line pressure, temperature, density etc available
- Various models pf Computing Units, µcs-3001, µcs-3002 and µcs-3003 to suite your application
MAGNETIC FLOW METER [FULL BORE] - SROAT 1000
- Variety of Sizes: DN 10 to DN 350
- Variety of Combinations: Integral / Remote Converter with or without Display
- Various compatible Liners & Electrodes
- Measurement results independent of variations in viscosity, density and conductivity of flowing media
- No mving parts ; No maintanance
- No Obstruction / No Restriction / No Pressure Loss
- Wide velocity range of 0.1m/s to 10 m/s
- Excellent Linearity & Accuracy, Typically better than ±0.5%
- Excellent long term stability
- Isolated 4-20 mA DC output available
- Pulse or frequency output also available optionally
- Protection Class confirming to IP 65
- Flameproof versions available
- Battery operated versions available
MAGNETIC FLOW METER [INSERTION TYPE] - SROAT 1000?
- Ideal solution for Water Flow Instruments in large diameter pipes
- Suitable for 200mm to 2000mm diameter pipes
- Remote / Integral Converter options
- Easy and Safe on-line installation / removal because of special gland seal and isolation valve.
- Economic as compared to Ultrasonic and Accurte as compared to its counterpart in Turbine type.
- No moving parts ; No maintenance
- Good Accuracy of measurement
- Isolated 4-20mA DC output available
- Protection Class confirming to IP 65
